A slice of MicroKorg

Inspired by the MicroMoorg project, I’ve decided to try and mod my own MicroKorg into a folding synthesizer. The control panel on the mK has always been a bit awkward to use, as you really do need to lean over it to read everything in the edit matrix. Plus, I thought it would just look awesome to have this little guy fold up like that.

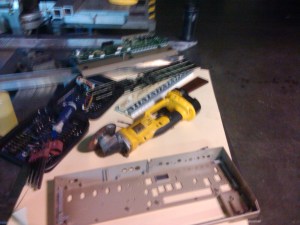

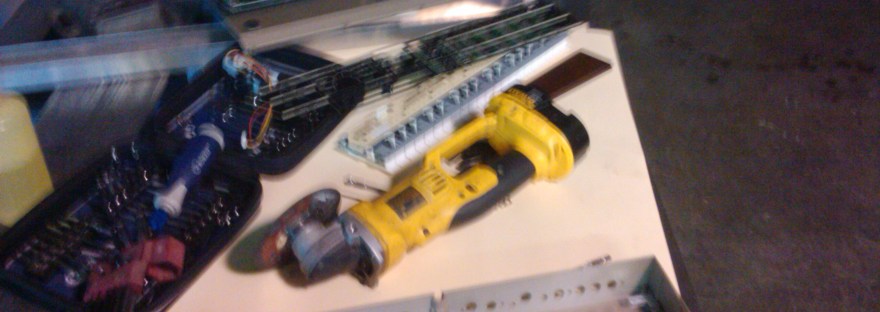

As you can see, the first part of the project is taking the thing apart. Sorry for the terrible picture, but it’s all I have right now. Once we got everything out, we carefully measured where the components fit and found, as others have, that you can slice the chassis apart pretty cleanly between the keyboard and the editor panel. We used a dremel to make the cut, which worked fairly well except for some melting underneath the arpeggiator switches. There’s really just not much plastic there to hold things up once you cut away the bottom portion, so we’re going to have to figure out how to reinforce that when this all goes back together.

You might notice that last sentence is in the future tense.

Once we had everything apart, we tried to fit the hinges we had onto the remaining case only to discover that nothing quite fit the way we wanted it to. After mocking up a few different ideas, we decided to call it quits and put the basic unit back together. Needless to say, this was quite disappointing, but better to take this project a little bit slow and have better results than a quick hack job that nobody would be happy with. And most importantly of all, the MicroKorg needs to still work when it’s all done.

So the next step is going to be figuring out exactly how to reattach the two pieces so as to allow freedom of movement but maintain some level of structural integrity. I’ve got some ideas, but only time will tell what’s going to work in the end. We’ll be updating the blog here with progress, so stay tuned.

(I say “stay tuned” a lot, don’t I?)
